Teleporter Component

Overview

The Teleporter component is a trigger-based system that automatically relocates the ego (autonomous) vehicle to a new spawn position whenever it exits through a designated trigger volume. It handles NPC clearance at the destination, optional delays, and logs the spawn selection data for analysis.

Key Design Goal

The Teleporter is designed for repeatable, controlled experiments: by targeting a midpoint lane segment with a randomized arrival time, each run places the ego vehicle at a different distance from a point of interest while keeping the scenario statistically comparable.

Spawn Strategies

The Teleporter supports two independent strategies, selectable from the Inspector.

Samples candidate spawn positions along a set of configured TrafficLane objects, then picks the candidate whose estimated travel time to a target midpoint lane is closest to a randomly drawn target time.

This strategy guarantees that the ego vehicle is placed at a realistic driving distance from the point of interest — far enough to observe natural traffic behaviour before reaching it.

Picks a random Transform from a hand-placed list of RandomSpawnPoint entries. Each entry can optionally override the rotation with a custom Euler angle.

Use this strategy when you need full manual control over spawn positions without any ETA logic.

LaneMidpoint Strategy in Detail

Candidate Generation

The Teleporter walks through all LaneSpawnSource entries and samples each lane at regular intervals defined by spawnSubdivisionSpacing (default 10 m):

Lane waypoints → cumulative distance table → sample every N metres

If includeSegmentEndpoints is enabled, the start and end of each lane are also included as candidates.

For each sample, the component caches:

  • World position (interpolated along the lane waypoints)
  • Forward direction (used to orient the vehicle on spawn)

Distance Calculation (Dijkstra)

For each candidate, the Teleporter computes the driving distance to the configured midpointSegment lane. When the candidate is on a different lane than the midpoint, it runs a lightweight Dijkstra search through the lane graph (NextLanes connections):

cost(start_lane) = lane_length - distance_from_start
cost(next_lane)  = cost(current_lane) + next_lane_length
...
stop when midpointSegment is reached

Candidates with no reachable path to the midpoint are excluded.

ETA Calculation

Travel time is estimated with a two-phase kinematic model (acceleration + cruise):

\[ t = \begin{cases} \sqrt{\dfrac{2d}{a}} & \text{if } d \leq \dfrac{v_c^2}{2a} \\[10pt] \dfrac{v_c}{a} + \dfrac{d - \dfrac{v_c^2}{2a}}{v_c} & \text{otherwise} \end{cases} \]

Where:

  • \(d\) = distance to midpoint (metres)
  • \(v_c\) = cruise speed (cruiseSpeedKmh converted to m/s)
  • \(a\) = assumed acceleration (assumedAcceleration)

Target Time Selection

Each teleport draws a random target arrival time uniformly from targetArrivalWindow:

t_target ~ Uniform(targetArrivalWindow.x, targetArrivalWindow.y)

The candidate with the smallest |ETA - t_target| is selected.

NPC Clearance

Before moving the ego vehicle, the Teleporter calls RemoveVehiclesInRadius() on every active TrafficManager in the scene, clearing all NPC vehicles within clearanceRadius of the destination. After clearing, it waits for teleportDelay seconds (plus an optional random spawnDelayRange) to let the physics settle before the actual teleport.

sequenceDiagram
    participant T as Trigger Volume
    participant TP as Teleporter
    participant TM as TrafficManager
    participant EGO as Ego Vehicle

    T->>TP: OnTriggerEnter (ego vehicle)
    TP->>TP: SelectSpawnCandidate()
    TP->>TM: RemoveVehiclesInRadius(dest, radius)
    TM-->>TP: vehicles cleared
    TP->>TP: Wait teleportDelay (+ random delay)
    TP->>EGO: Disable Rigidbody (kinematic=true)
    TP->>EGO: SetPositionAndRotation(dest)
    TP->>EGO: Reset velocities, re-enable physics
    TP->>TP: LogSpawnSelection()

Inspector Reference

Teleport Timing

Field Default Description
clearanceRadius 10 m Radius around destination to clear NPC vehicles
teleportDelay 0.5 s Fixed wait after NPC clearance, before teleport
spawnDelayRange (0, 0) Extra random delay: X = min, Y = max. Set Y > 0 to enable.

Strategy Selection

Field Default Description
spawnStrategy LaneMidpoint LaneMidpoint or RandomPoint

Lane-Based (Midpoint Targeting)

Field Default Description
laneSpawnSources — Lanes to sample candidates from
spawnSubdivisionSpacing 10 m Distance between sampled points along each lane
includeSegmentEndpoints true Include lane start and end as candidates
midpointSegment — The target lane for ETA calculation
midpointSegmentFraction 0.5 Normalised position on midpoint lane (0 = start, 1 = end)
cruiseSpeedKmh 30 km/h Cruise speed for ETA estimation
assumedAcceleration 2 m/s² Acceleration for ETA estimation
targetArrivalWindow (0, 90) s Random range for target arrival time

Random Spawn Points

Field Description
randomSpawnPoints List of Transform entries used by the RandomPoint strategy
useCustomRotation Per-entry toggle to override rotation with customEulerRotation

Spawn Selection Logging

After every teleport, the Teleporter calls LogSpawnSelection() on the ego vehicle's LogAutonomous component (if present). This writes one row to the spawn selection CSV:

Column Description
timestamp Simulation time of teleport
midpoint_segment Name of the target midpoint lane
spawn_lane Name of the selected spawn lane (or "RandomPoint")
sample_index Index of the sample point on the spawn lane
distance_to_midpoint Dijkstra path distance to midpoint (m)
estimated_time Kinematic ETA to midpoint (s)
target_time Randomly drawn target arrival time (s)
reached_cruise Whether cruise speed was reached before the midpoint
spawn_x/y/z World position of the teleport destination

See Loggers for details on the full CSV output.

Scene Setup

Step 1 — Create the Trigger Volume

  1. Create an empty GameObject.
  2. Add a BoxCollider and enable Is Trigger.
  3. Scale it to cover the exit area of your road loop.
  4. Attach the Teleporter script.

Step 2 — Configure Lanes (LaneMidpoint strategy)

  1. In the Inspector, add entries to Lane Spawn Sources and assign TrafficLane objects that cover the valid spawn zone.
  2. Assign the Midpoint Segment — the lane the ego vehicle should be heading toward on each run.
  3. Adjust cruiseSpeedKmh and assumedAcceleration to match the ego vehicle's expected behaviour.

Step 3 — Tune the Arrival Window

Set targetArrivalWindow to the range of arrival times you want to study. For example:

  • (10, 60) s → vehicle always arrives between 10 and 60 seconds after spawn
  • (0, 0) → vehicle always spawns as close to the midpoint as possible

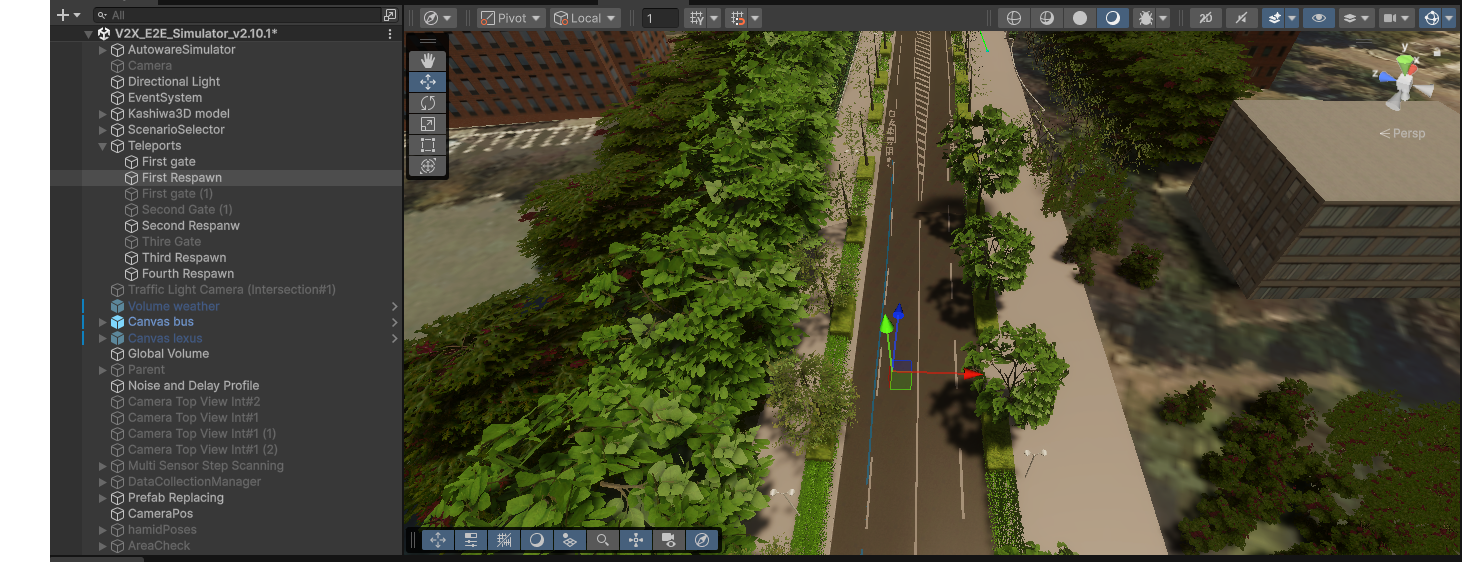

Teleporter in the scene
Figure 1: Final vehicle position after teleport

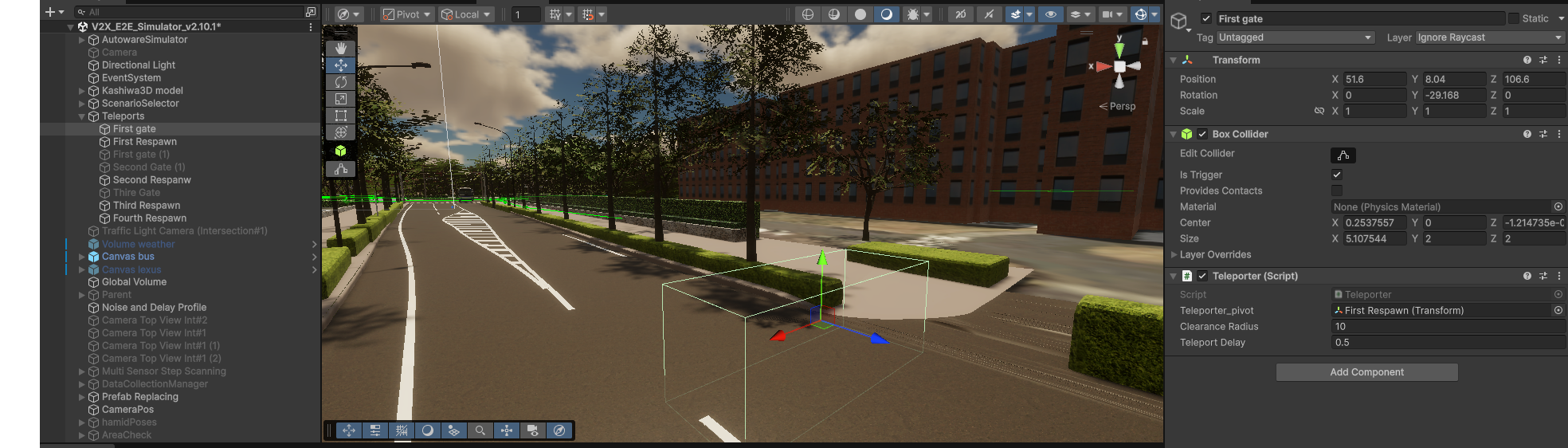

Trigger collider setup
Figure 2: Trigger gate and BoxCollider in the scene

Tips and Best Practices

Lane Coverage

Add lanes that span the full approach zone to the midpoint. More candidates give the system more flexibility to match the target arrival time precisely.

Clearance Radius

Set clearanceRadius large enough to prevent the ego vehicle from spawning inside an NPC. A value of 10–15 m is usually sufficient.

Midpoint Must Be Reachable

If no candidate has a connected path to the midpointSegment, the teleport is aborted. Verify lane connections with the TrafficManager gizmo (enable showSpawnPoints in the Inspector).

Re-trigger Prevention

The Teleporter internally tracks which vehicles are currently being teleported (teleportingVehicles HashSet), so a vehicle re-entering the trigger during the delay phase is ignored.
